View

 Output Window

The Output Window allows the user to see information about system hardware and software. This information is divided between Compilation, System Information, and AVB Stream Count tabs.



Note: The Output Window is docking menu. See the Docking Menus section of the Menu Navigation page for additional details.



Compilation

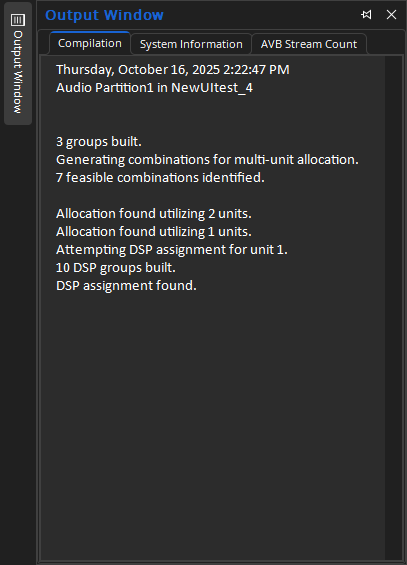

Shows any errors or comments generated from the last system Compilation.







System Information

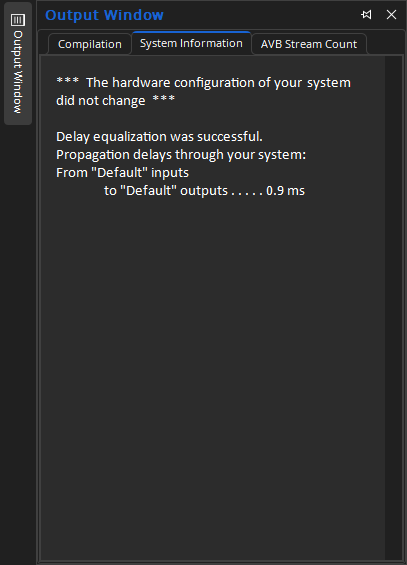

Shows information on the hardware layout and latency of the system.







AVB Stream Count

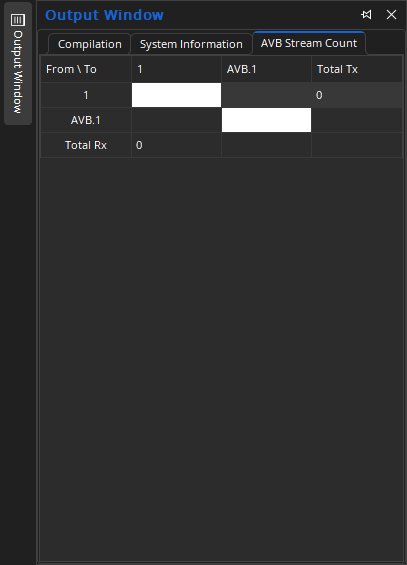

Shows the number of AVB streams being transmitted and received by each unit in the system.



The top row and the left-most column contain Unit IDs as specified in the Equipment table. Both audio and video devices will be represented in the table, but only streams emitted or terminated in audio devices are currently reported.

Each AVB Input and Output block needs a separate AVB stream and will report as such.

Streams on the same device, but feature on different Partitions are not combined together. This allows Partitions to be reconfigured separately without affecting Streams between devices.
